Detailed Introduction

Equipped with a power shift transmission that features 6 forward gears and 3 reverse gears, which are electro-hydraulically controlled. This transmission allows for the selection of the optimal gear based on the working road condition, ensuring the best match between traveling and operation.
The drive axle is an integral three-segment design, internally built with an imported no-spin automatic limited slip differential. This design ensures a stable and reliable drive, providing excellent performance.
The balance box allows for a 15° angular swing in the vertical direction, while the heavy-duty roller chain drive enhances the machine's terrain adaptability. It can effectively handle various road conditions, providing stable power output and strong drive force.

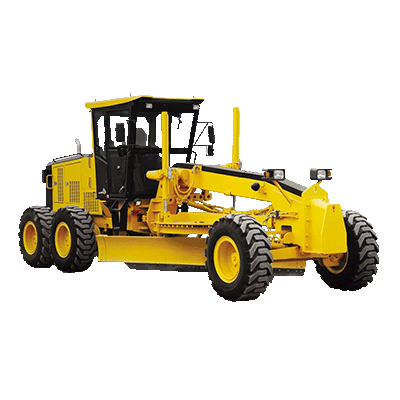

Product name	SG16-3
Operation weight	15100
Wheelbase	6260
Wheel tread	2155
Minimum ground clearance	430
Steering angle of front wheels (°)	±45
Articulated steering angle (°)	±25
Maximum traction force (kN)	79.3 (f=0.75)
Turning radius (mm)	7,800 (Outer side of front wheel)
Maximum gradeability (")	20
Width of shovel blade (mm)	3660
Height of shovel blade (mm)	635
Blade slewing angle (º)	360
Blade cutting angle (º)	37-83
Dimensions (mm)	8726x2600x3400
Maximum digging depth of blade	500
Engine motor	6BTAA5.9-C160
Emission	China-II
Type	Mechanical direct injection
Rated power/rated speed (kw/rpm)	118kW/2200
Torque	118kW/2200
Gears	Six forward and three reverse
Transmission	Countershaft power shift
